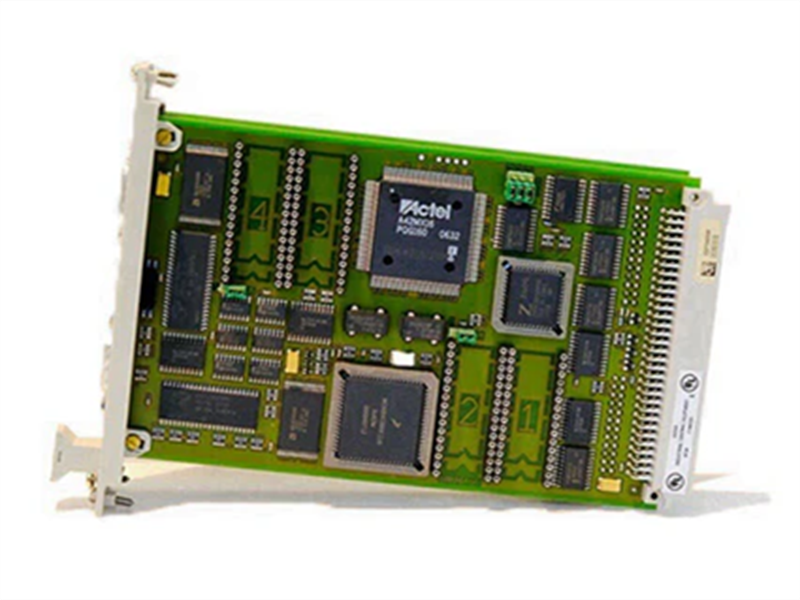

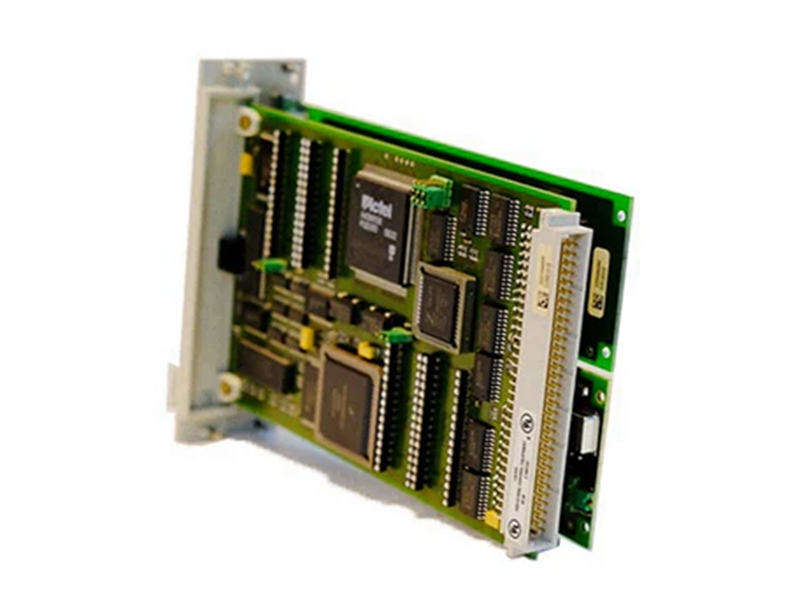

وحدة المعالجة المركزية من هانيويل 10012/1/2

Description:

The Honeywell 10012/1/2 Module Central Processing Unit Flash Memory is engineered for efficient data management and seamless integration in industrial automation systems.

The Honeywell 10012/1/2 is a compact and lightweight pressure sensor designed for demanding industrial automation applications. It delivers high accuracy and repeatability for precise pressure measurement across a wide pressure range. commonly used within the TDC 3000 or Experion Process Knowledge System (PKS) frameworks. This module serves as the core processing unit, executing control logic and managing data for industrial automation applications requiring high safety and reliability, such as oil and gas, chemical processing, and power generation. Engineered for seamless integration and efficient performance, it ensures precise control and fault-tolerant operation in critical process environments.

Specifications:

Product No. : 10012/1/2

Approvals: CE; TÜV, UL approvals pending
Safety class: AK1-6 (AK6 in redundant mode)
Software versions : = 500
Space requirements : 4 TE, 3 HE (= 4 HP, 3U)
Power Power requirements : 5 Vdc 35 mA ; 24 Vdc 35 mA
Number of input channels : 16
Input range : 0 to 4.1 V
Input resistance : > 1 MOhm
A/D converter : 12-bit
A/D converter inaccuracy : ± 1 LSB
Module inaccuracy : <0.25%
Absolute max. input signal : ± 36 Vdc
Crosstalk between channels : > 60 dB
Operating Temperature: 0°C to +60°C

Features:

• High-Speed Processing

Efficiently execute complex logic and algorithms.

• Large Memory Capacity

Store extensive programs, data, and historical logs.

• Redundancy Options

Hot-standby redundancy for critical applications to ensure continuous operation in case of a processor failure.

• Built-in Diagnostics

Comprehensive self-diagnostic capabilities to identify and report faults quickly.

• Scalability

Ability to expand system capabilities by adding more I/O or communication modules.

• Reliable Digital Signal Processing

Ensures accurate and stable input signal handling for various industrialprocesses.

• Isolation

Protects signals and maintains integrity in harsh environments.

• Flexible Configuration

Can be customized to fit different control system requirements.

• User-Friendly Interface

Simplifies parameter setting and fault diagnosis for efficient operation andmaintenance.

Frequently Asked Questions:

Q1: What do the indicator lights (LEDs) on this module represent? How can I determine the status using the indicator lights?

This is the most frequent troubleshooting question. The module typically has multiple LED indicators:

A1: RUN (Run) light: Solid or regularly flashing indicates the CPU is running normally. Off or abnormal flashing indicates a CPU malfunction, program loss, or power problem.

COM/NET (Communication) light: Flashing indicates data communication with a host computer or other devices on the network. Solid or off may indicate a network configuration error, terminating resistor problem, or communication port failure.

BATT (Battery) light: Illuminated (usually red or yellow) indicates a low backup battery. This is a critical warning; the battery is used to retain program and configuration data in RAM during power outages. It must be replaced as soon as possible; otherwise, power outages will result in program loss.

Q2: How do I replace or maintain this CPU module? What precautions should I take?
A2: Important Warning: Always disconnect the power before operation! However, pay attention to the logical sequence.

Backup Procedure: Before performing any hardware operations, the current control program, database, and configuration must be completely uploaded and backed up from the online controller using original manufacturer configuration software (such as Honeywell CARE, EBI tools). This is the most crucial step.

Record Jumper/Switch Settings: The module may have DIP switches or jumpers used to set addresses (such as C-Bus addresses) and communication baud rates. Take photos or record detailed information with your phone before disassembly.

Prepare Spare Batteries: If maintenance is planned, purchase a 3.6V or 3V lithium battery of the same specification in advance (usually a removable barrel-shaped battery).

Replace Module: After powering off, carefully remove the module from the backplane slot and insert the new module, ensuring all jumper settings are consistent with the original module.

Restore Program: After powering on, use software to download the backed-up program to the new CPU.

Datasheet Link:

10012/1/2 Honeywell Central Processing Unit Module PDF Datasheet
