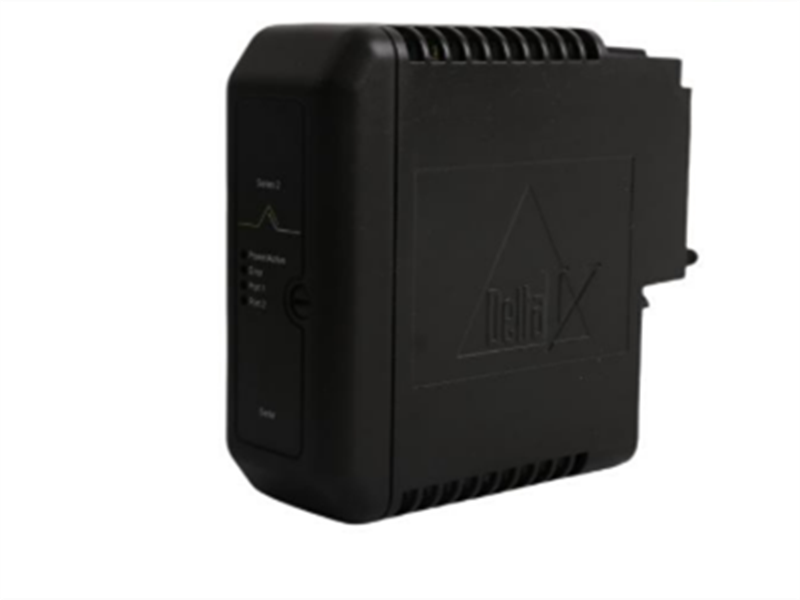

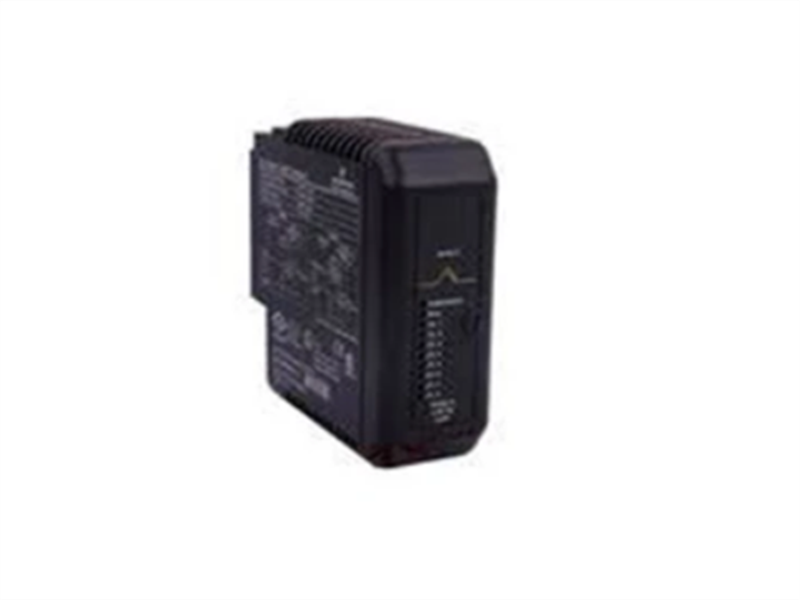

بطاقة واجهة تسلسلية EPRO DeltaV KJ3241X1-BA2

Description :

The Emerson KJ3241X1-BA2 is a rugged serial interface card for DeltaVSeries 2 systems.The Emerson KJ3241X1-BA2 Serial Interface Card enables seamless communication between DeltaV systems and external serial devices. Supporting both RS-232 and RS-485 protocols, it facilitates data exchange with PLCs, smart instruments, barcode readers, and other serial-enabled equipment. Moreover, its compact design and robust performance make it ideal for space-constrained control cabinets and harsh industrial environments.

In addition, the module simplifies system expansion by allowing engineers to connect legacy devices without complex programming. Its plug-and-play architecture ensures fast deployment and reduces integration costs.

Features:
Certified for use in hazardous areas with global safety approvals. Supports secure serial data transmission.
Features rotary keying for terminal block compatibility. Requires power-off during insertion or removal.

Parameters:
Model: KJ3241X1-BA2
Power Supply: 12V DC at 30OmA

Communication Protocol: PROFIBUS DP

Operating Temperature: -40C to +70C

Shock Resistance: 1Og(Y2 sinewave, 1lms)

Vibration Resistance: Imm peak-to-peak (2-13.2Hz), O.7g(13.2-15OHz)

Humidity Range: 5% to 95% RH, non-condensing

Airborne Contaminants: ISA-S71.O4 Class G3 compliant

Terminal Block Key: D4

Applications:

1. Connecting Modbus RTU devices in water treatment facilities
2. Integrating barcode scanners in logistics and material handling
3. Interfacing serial sensors and legacy instrumentation in manufacturing lines

Frequently Asked Questions:

Ql: What serial protocols does the card support?
Al: It supports both RS-232 and RS-485 communication standards.
Q2: Is it compatible with DeltaV systems?
A2: Yes,it integrates seamlessly with DeltaV Series 2 architecture.
Q3: Can it be used in hazardous environments?
A3:It meets industrial certifications, but specific hazardous location compliance should be confirmed with the site requirements.
Q4: Does it require external power?
A4: Yes,it operates on24 VDC supplied through the system's power distribution.

Datasheet Link:

KJ3241X1-BA2 EPRO DeltaV Serial Interface Card PDF Datasheet
