NDBU-95C ABB 3AFE64008366 وحدة تفرع DDCS 9 قنوات

Description:

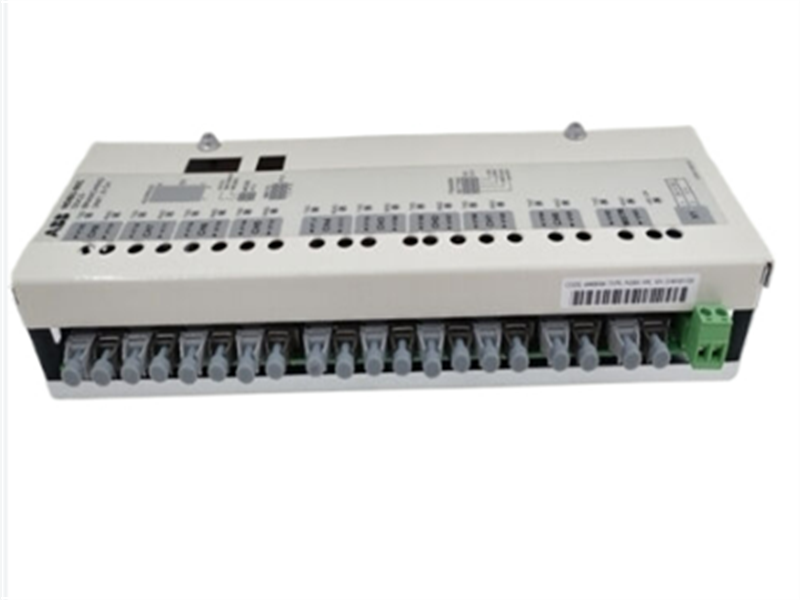

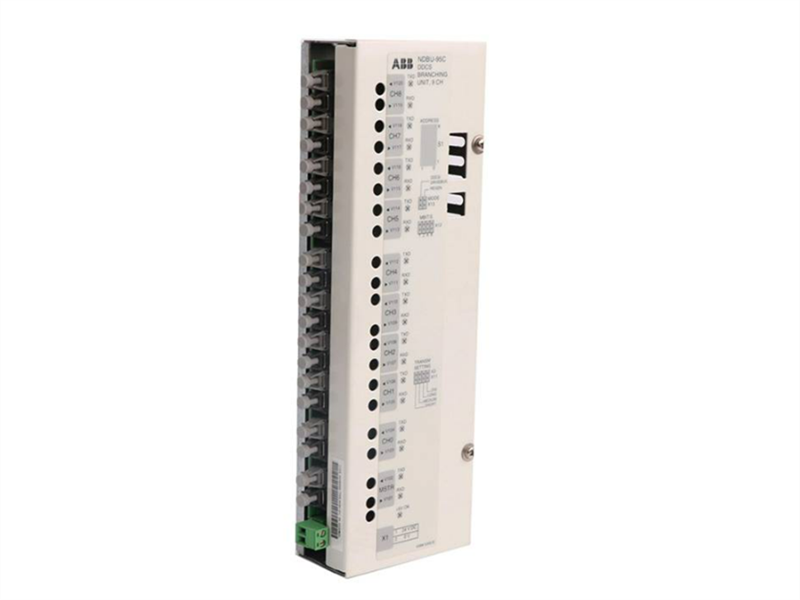

The ABB NDBU-95C, also known by its model type 6398 5350 B, is a sophisticated DDCS Branching Unit designed for reliable communication in industrial applications. The NDBU-95C is specifically engineered for applications requiring robust data transmission with minimal interference. Equipped with a fiber optic, 9-channel configuration, the device provides high-speed, noise-free data transfer, making it a popular choice in high-demand industrial environments where precision and efficiency are paramount.

By supporting fast and secure data exchange, itimproves system performance in demanding industrial environments. Additionally,its compact form factor allowseasy panel mounting, while the rugged design ensures reliable operation across wide temperature ranges.Plays a crucial role in ensuring seamless fiber optic communication across various systems.

FEATURES

• High Channel Capacity

Unlike many branching units, the NDBU-95C offers nine fiber optic channels, enabling greater flexibility and communication capability.

• Integration with ABB Drives

Designed specifically for compatibility with ABB Drives, this unit provides a streamlined, high-performance solution within ABB’s ecosystem.

• Superior Fiber Optic Performance

Fiber optic technology is a critical advantage of this unit, ensuring superior data integrity and stability compared to other communication options.

Parameters:

Product Name:NDBU-95C

Rated current (In): 630A
Rated voltage (Ue): AC 400V / 690V can be selected
Number of poles: 3P/4P
Breaking capacity (Icu): 100kA (AC 400V)
Tripping characteristics: Type B/C (adjustable)
Mechanical life: 10,000 mechanical operations
Electrical life (AC-23): 5,000 load operations
Communication type: Fiber optic communication
Number of fiber channels: 9
Operating temperature range: -20°C to 70°C
Power supply: 24 VDC
Data transmission rate: Up to 1 Gbps
Protection level: IP65
Connector type: SC/LC duplex connector
Signal loss per channel: < 0.5 dB
Mounting Style: Panel-mounted
Protection Grade: IP20

Frequently Asked Questions:

Q1. What are the basic functions of the NDBU-95C?

The NDBU-95C is a passive, multi-port network branch/hub unit. Its core function is to provide physical connection points for ABB's DDCS network (e.g., for peer-to-peer communication between Symphony system controllers or for connections to I/O units).

2. What does the "9-channel" of the NDBU-95C specifically mean?

The 9-channel refers to the fact that the unit provides 9 identical physical connection ports.

Each port is a 9-pin D-sub connector.

One port is typically used as a backbone port, connecting to the upstream branch unit or network master controller.

The remaining 8 ports are used as branch ports for connecting downstream DDCS devices.

This design allows a single unit to connect up to 8 devices and can be cascaded to expand the network size.
