Vibration |
|
Model
|
RPS6U
|
| PN No. |
200-582-993-NHh
|
|
Catalog
|
NIL |
|
Description
|
Rack power supply unit
|
| Origin |
Switzerland
|
| HS CODE |
85389091
|
| Dimension |
12*11*8 (CM)
|
| Weight |
2. 1 kg |
Description:

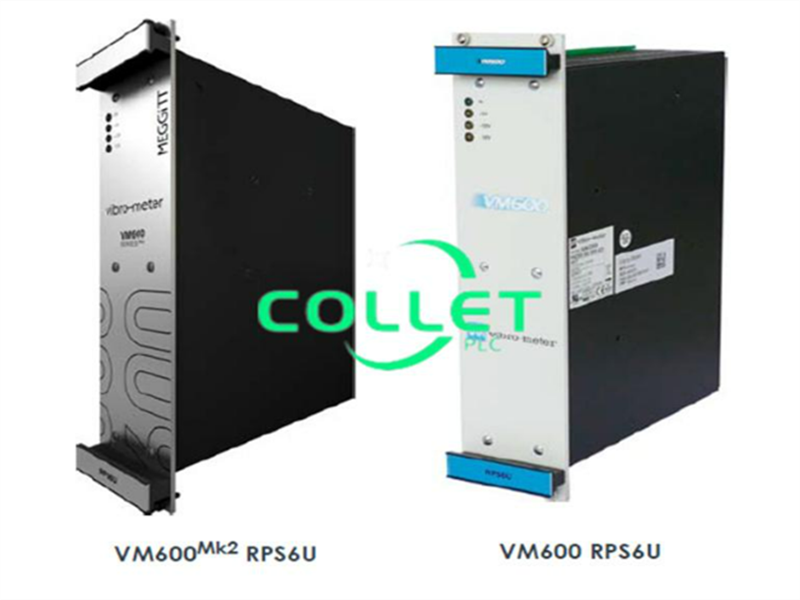

The VM600Mk2/VM600 RPS6U rack power supplies are designed for use in the VM600Mk2/VM600 series of machinery protection systems and condition and performance monitoring systems, from Meggitt’s vibro-meter® product line.
A VM600Mk2/VM600 RPS6U rack power supply is installed in the front of a VM600Mk2/VM600 ABE04x system rack (19″ system racks with a standard height of 6U) and connects via two high-current connectors to the VME bus of the rack’s backplane. The RPS6U power supply provides +5 VDC and ±12 VDC to the rack itself and all installed modules (cards) in the rack via the rack’s backplane.
Either one or two VM600Mk2/VM600 RPS6U rack power supplies can be installed in a VM600Mk2/ VM600 ABE04x system rack. A rack with one RPS6U power supply (330 W version) supports the power requirements for a full rack of modules (cards) in applications with operating temperatures up to 50°C (122°F).
Alternatively, a rack can have two RPS6U power supplies installed in order to either support rack power supply redundancy or in order to supply power to the modules (cards) non-redundantly over a wider range of environmental conditions.
A VM600Mk2/VM600 ABE04x system rack with two RPS6U power supplies installed can operate redundantly (that is, with rack power supply redundancy) for a full rack of modules (cards). This means that if one RPS6U fails, the other will provide 100% of the rack’s power requirement so that the rack will continue to operate, thereby increasing the availability of the machinery monitoring system.
Features:
- Standard rack design
VM600-ABE042 204-042-100-011 adopts a standard 19-inch rack design, which is easy to install and integrate into existing automation systems.
- Highly integrated
The module integrates multiple functions, including vibration monitoring, combustion control, process control, etc., reducing system complexity and maintenance costs.
- High performance
The use of advanced processor technology and large-capacity memory ensures excellent performance in real-time control applications, can quickly process large amounts of data, and meet high-demand automation tasks.
- Modular design
Allows users to flexibly configure the system according to actual needs, and can add or delete input/output modules, communication modules, etc. to adapt to different application requirements.
- Scalability
Supports a variety of expansion options, including additional memory, communication interfaces, etc., to meet more complex application requirements.
- High reliability
Adopts rigorously tested and verified hardware and software to ensure stable operation in various industrial environments.
Parameters:
Product Name: RPS6U 200-582-993-NHh
Operating temperature range : −25 to +65°C (−13 to +149°F)
Storage temperature range : −40 to +85°C (−40 to +185°F)
Humidity : ≤ 95% non-condensing
Vibration : 10 to 2000 Hz, 5 g, 2 h in each direction
Shock : 100 g, 6 ms, half-sine pulse
Datasheet Link:
RPS6U 200-582-993-NHh Rack power supply unit PDF Datasheet
