Advant Controller 450: A Complete Guide to ABB’s High-End Process Controller

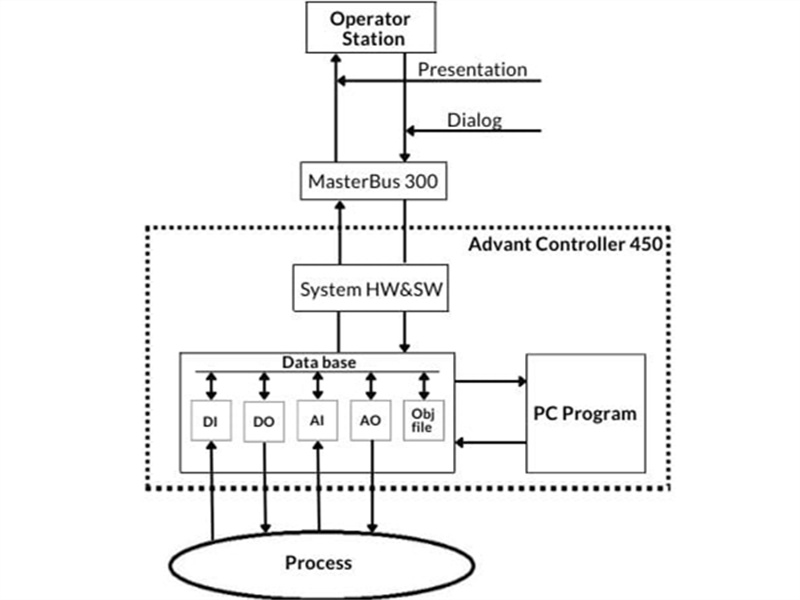

The Advant Controller 450 (AC450) is ABB’s flagship high-end process controller, designed for applications that require exceptional reliability, extensive communication capabilities, and large-scale I/O handling. With support for up to 5,700 I/O points, multiple redundancy levels, and broad protocol compatibility, the AC450 has long been a trusted choice in power generation, oil & gas, utilities, and heavy industry.

This article provides a complete overview of the AC450—its features, architecture, communication options, and typical applications—in a format easy to understand for engineers, integrators, and technical buyers.

1. What Makes the Advant Controller 450 Special?

The AC450 is designed for demanding industrial environments where system uptime, stability, and interoperability are mission-critical. Unlike standard PLCs, the AC450 handles not only logic and sequencing but also:

• Advanced PID control

• Auto-tuning adaptive control

• Fuzzy logic control

• Positioning control

• Data processing, event logging, and reporting

It is effectively a hybrid controller—combining the robustness of a DCS with the flexibility of a PLC.

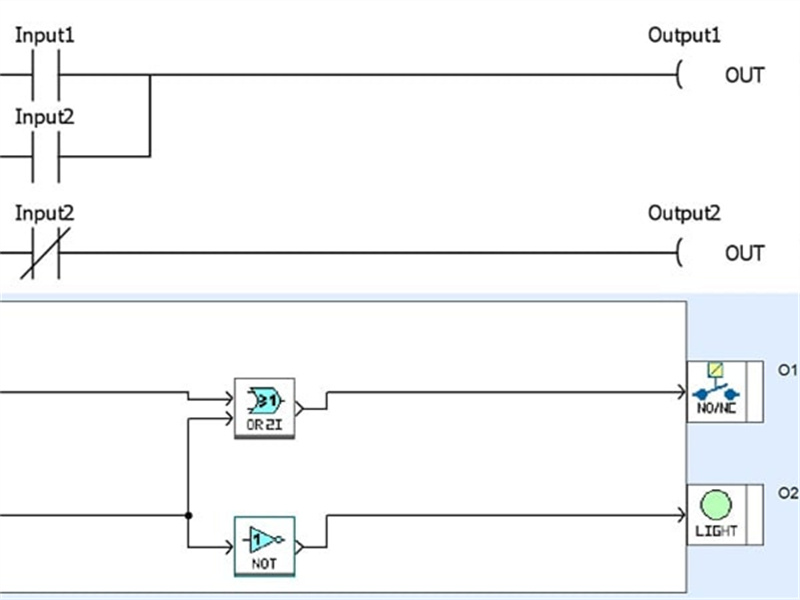

2. Graphical Programming with AMPL

The AC450 is programmed using AMPL (Advanced Master Programming Language), a graphical engineering tool used across the Advant OCS family.

Key advantages of AMPL:

• Drag-and-drop graphical programming

• Large built-in library of function blocks

• Support for user-defined blocks

• Visual debugging and testing

• Ideal for large and complex control logic

This allows engineering teams to build and maintain control strategies more efficiently than with pure ladder logic.

3. Comprehensive I/O Capabilities

The AC450 supports both centralized I/O (S100) and distributed I/O (S800), giving engineers the freedom to design layout based on plant size and cabling costs.

S100 Central I/O (Near the Controller)

• Up to 5 I/O racks

• Up to 100 I/O modules

• Ideal for equipment located near the control room

• Supports analog, digital, pulse, temperature, and specialized modules

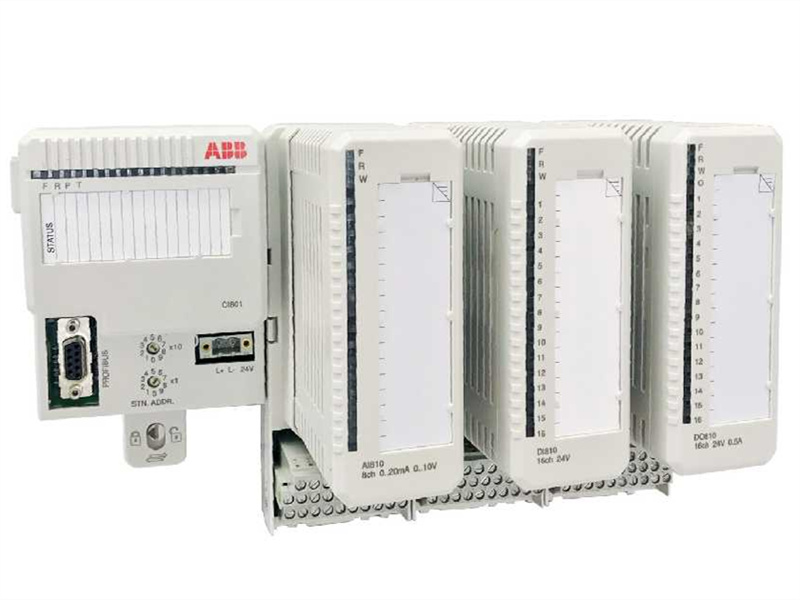

S800 Distributed I/O (Remote Stations)--PM866AK01

• Installed up to 13.3 km (8.2 miles) away

• Connected via Advant Fieldbus 100

• Reduces long field-cable runs

• Suitable for large or spread-out facilities

Total I/O Capacity Overview

Such capacity makes AC450 suitable for large thermal power plants, chemical refineries, and integrated manufacturing lines.

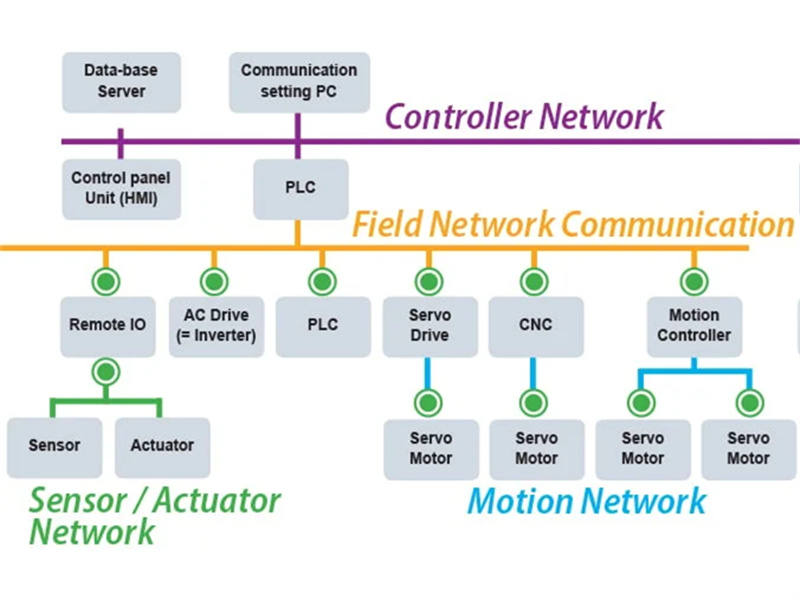

4. Industry-Leading Communication Protocols

One of the AC450’s strongest advantages is its broad communication compatibility. It supports nearly every major industrial protocol, allowing seamless integration with third-party devices and systems.--CI543

System-Level Communication

• MasterBus 300/300E

• GCOM (for PC communication and engineering tools)

Field Device Communication

• Advant Fieldbus 100

• Profibus DP

• LONWORKS (ideal for motor control systems)

Multi-Vendor Interfaces (Interoperability)

• Modbus

• Siemens 3964R

• Allen-Bradley DF1

Remote and Telecontrol

• RCOM / RCOM+

• SPA bus

• RS232 / EXCOM for printers and external PCs

This makes the AC450 an excellent choice for brownfield upgrades, where legacy and modern equipment must coexist.

5. Redundancy for Maximum Availability

For industries operating 24/7, any downtime can lead to major financial losses. To address this, the AC450 offers redundancy at multiple levels:

Supported Redundancy Features

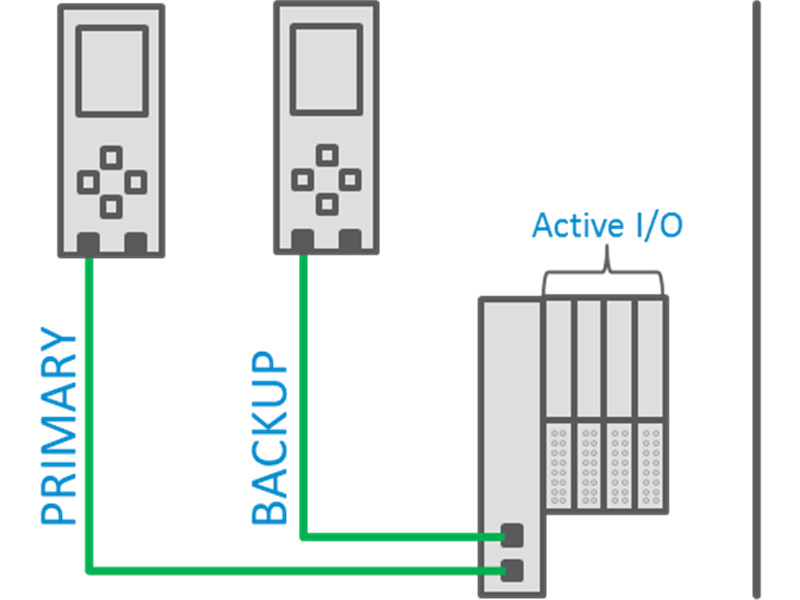

• Hot-standby CPU redundancy (bumpless switchover <25 ms)

• Redundant MasterBus 300/300E

• Redundant Advant Fieldbus 100

• Dual power supplies and voltage regulators

• Redundant I/O boards

This architecture ensures system reliability even during hardware failures or maintenance operations.

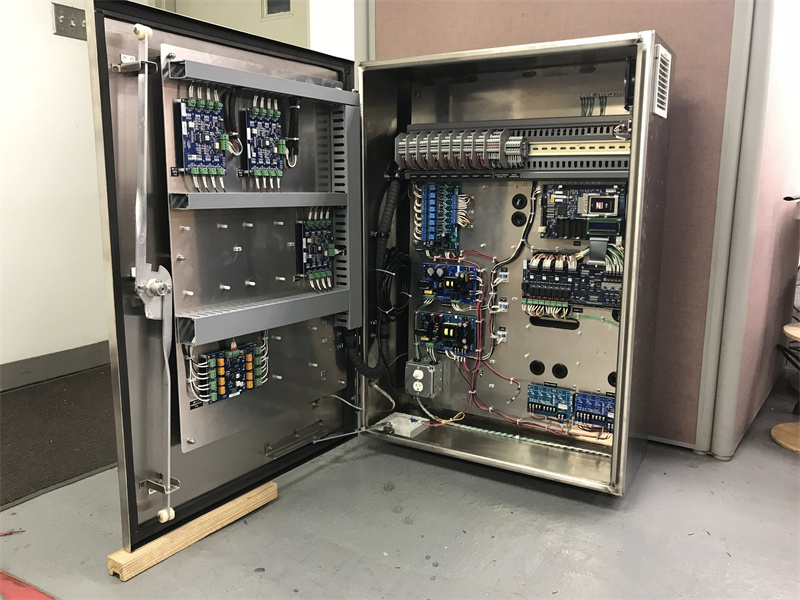

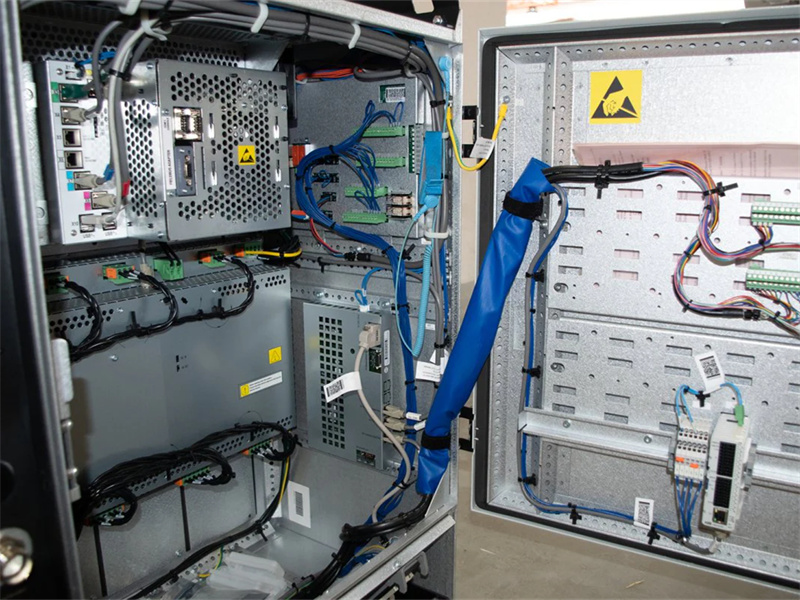

6. Flexible Installation and Cabinet Options

The AC450 can be mounted in a variety of industrial cabinet types:

• IP21 / IP41 / IP54 protection classes

• Optional heat exchangers for harsh environments

• Swing-out racks for easy wiring access

• Optical bus extension up to 500 m for S100 I/O racks

This allows the controller to be installed in both clean control rooms and rugged industrial areas.

7. Typical Applications

Advant Controller 450 is widely used in industries that require high reliability and large-scale control capabilities:

• Power generation (thermal, hydro)

• Oil & gas processing

• Petrochemical plants

• Pulp & paper mills

• Steel manufacturing

• Water treatment facilities

• Remote control and telecontrol systems

Its combination of stability, scalability, and communication flexibility makes it suitable for both new installations and system modernization projects.

8. Final Thoughts

The Advant Controller 450 remains one of ABB’s most capable and reliable process controllers. Its strengths include:

• High processing power

• Large I/O capacity

• Extensive communication protocol support

• Robust redundancy options

• Graphical programming tools

• Flexible integration with existing systems

For facilities that demand continuous operation, extensive interoperability, and long-term stability, the AC450 continues to be a dependable choice.
