Expertise and pedigree
60+ years of experience and recognised expertise in sensing and monitoring solutions, especially for harsh environments. Meggitt solutions from the Vibro‑Meter ® product line are trusted by original equipment manufacturers (OEMs) globally and our products have become standard-fit components on machinery used throughout the Energy industry.

Complete solutions
• One-stop shopping: Complete solutions including measurement chains (sensors, cabling, signal conditioners and galvanic separation units), monitoring systems and software from a single supplier.
• Fully-integrated solutions: Interfaces for third-party products such as DCS, PLC and/or SCADA systems.
• Flexibility and support: Customised solution design including turnkey solutions, services and support.

High performance, quality and reliability

Vibro-Meter ® products are renowned for their superior performance and best-in-class quality (“Swiss Made”) offering high MTBF solutions for critical machinery and balance of plant (BOP) equipment in Power Generation, Oil & Gas and other industrial applications.

100% predictability from sensors to decisions
Safety first with machinery protection
For critical rotating machinery in power plants, regulations dictate that protection systems are used to measure and monitor changes in machinery vibration levels, gas turbine combustion chamber pressure levels and/or machine behaviour. Should a breakdown threaten, our systems are designed to initiate a shutdown within fractions of a second.

Comprehensive condition monitoring solutions
To cut the cost of unscheduled maintenance, unnecessary inspection and troubleshooting, operators must anticipate wear and tear and recognize incipient failure conditions. The Meggitt Vibro-Meter ® turnkey condition monitoring solutions includes sensors, conditioners, electronics, data acquisition systems, software and data analytics solutions.

Software to support predictive maintenance programs
Advanced monitoring and diagnostic functions, enabling informed decisions on all aspects of power plant management.

For complex installations
The high channel density of VM600 rack-based systems addresses complex installations. Dynamic inputs from proximity probes, accelerometers, velocity, dynamic pressure and ice detection sensors are fed into standard 19-inch, 6U racks.

Accessible
VM600 is designed for plants where measurement data from all the machines is accessed in a safe, central area, with personnel obtaining waveforms by physically connecting to raw signals.

For reactive or proactive management
Whether you want to fit and forget a reliable vibration protection system, or you require advanced combustion dynamics analyses to ensure safe and optimal fuel mixtures, the VM600 covers basic to highly sophisticated analysis.

VM600 system segregation
The VM600 system uses one type of card for machinery protection and another for condition monitoring in order to separate these functions, thereby ensuring API 670 compliance, improving cyber security and reducing costs.

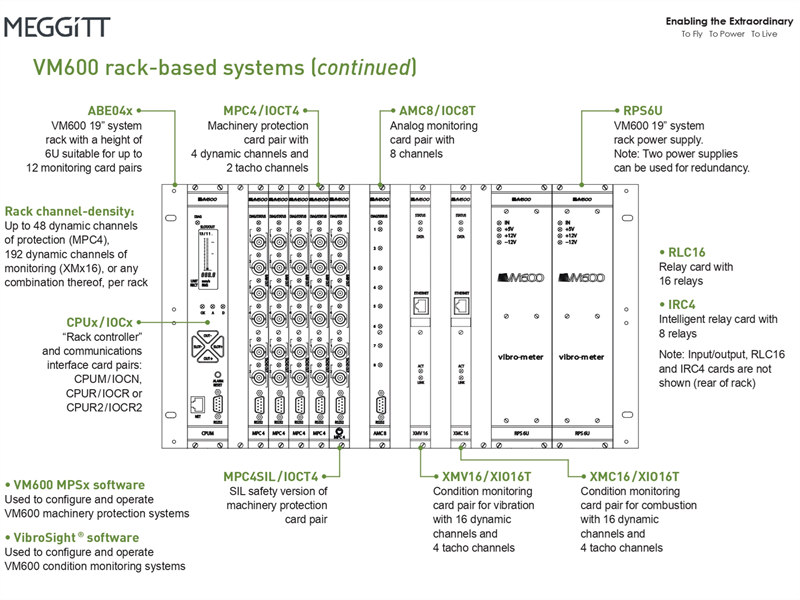

ABE04x •
VM600 19” system rack with a height of 6U suitable for up to 12 monitoring card pairs

• RPS6U
VM600 19” system rack power supply.
Note: Two power supplies can be used for redundancy.

MPC4 / IOCT4 •
Machinery protection card pair with 4 dynamic channels and 2 tacho channels

• AMC8 / IOC8T
Analog monitoring card pair with 8 channels

CPUx / IOCx •
“Rack controller”and communications interface card pairs:
CPUM / IOCN,
CPUR / IOCR or
CPUR2 / IOCR2

• RLC16
Relay card with 16 relays

• IRC4
Intelligent relay card with 8 relays
Note: Input/output, RLC16 and IRC4 cards are not shown (rear of rack)

• XMV16 / XIO16T
Condition monitoring card pair for vibration with 16 dynamic channels and 4 tacho channels

MPC4SIL / IOCT4 •
SIL safety version of machinery protection card pair

• XMC16 / XIO16T
Condition monitoring card pair for combustion with 16 dynamic channels and 4 tacho channels

• VM600 MPSx software
Used to configure and operate VM600 machinery protection systems

• VibroSight ® software
Used to configure and operate VM600 condition monitoring systems

Rack channel-density:
Up to 48 dynamic channels of protection (MPC4), 192 dynamic channels of monitoring (XMx16), or any combination thereof, per rack

Sensors (measurement chains) for
machinery protection and condition monitoring

Dynamic pressure
(CPxxx piezoelectric pressure sensors)

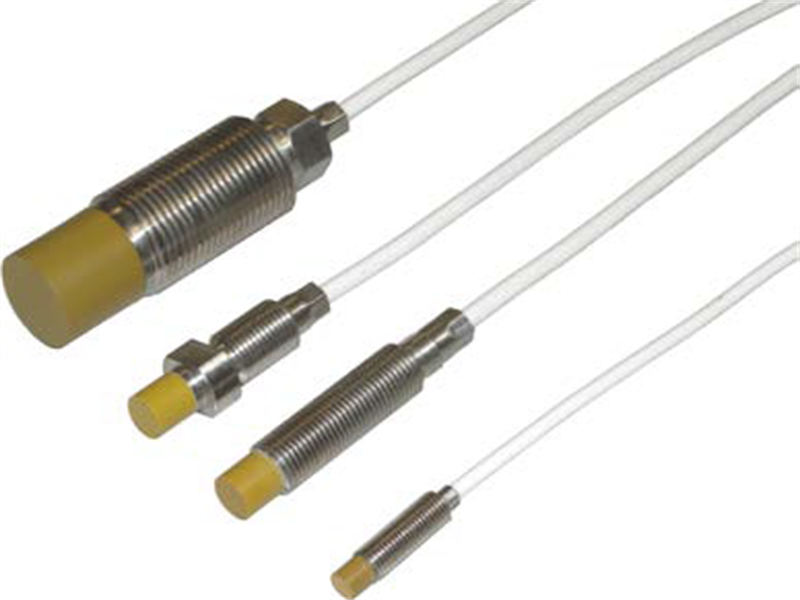

Relative vibration
(TQxxx proximity sensors and PAxxx probe mounting adaptors) Absolute vibration

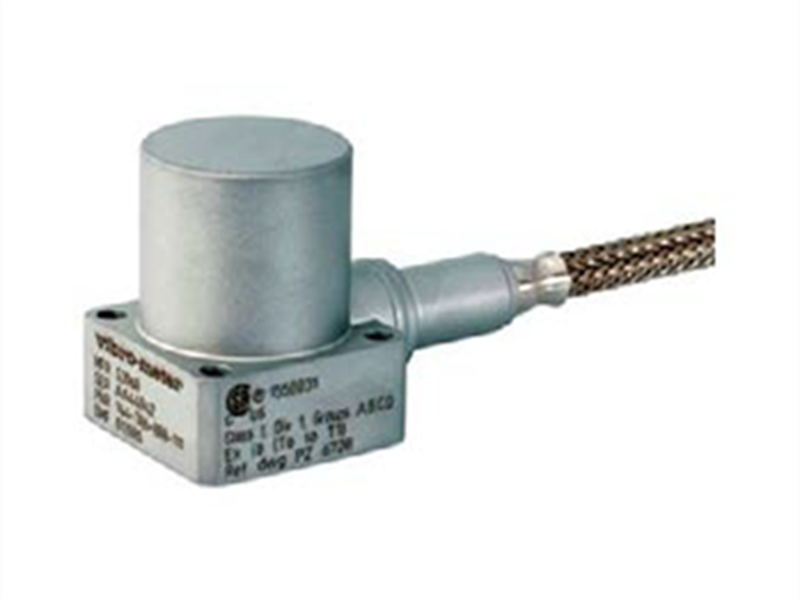

(CAxxx piezoelectric accelerometers, CExxx and PVxxx piezoelectric accelerometers and velocity sensors, CVxxx and VExxx velocity sensors, … )

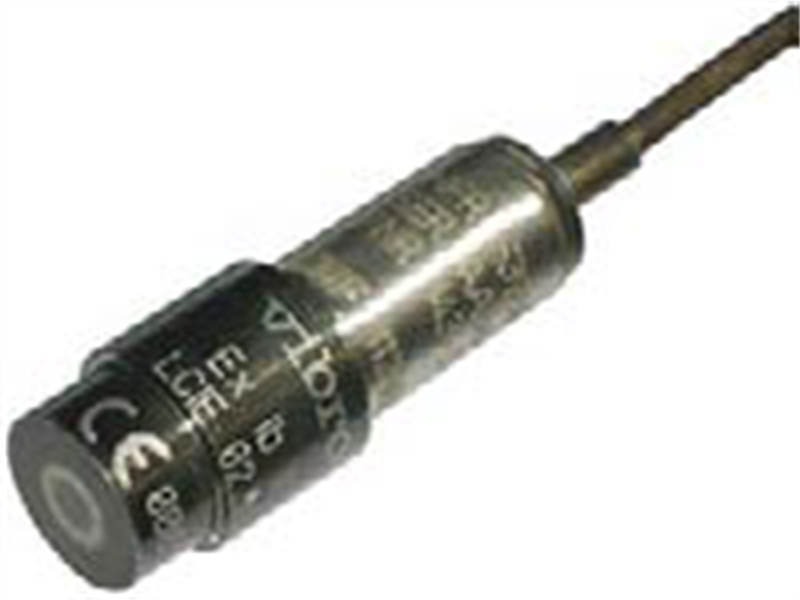

CAxxx vibration sensor measurement chains

High-performance, high-temperature (absolute) vibration measurement solutions CAxxx measurement chains consist of a CAxxx piezoelectric accelerometer, cabling and IPC70x signal conditioner, and optional GSI127 galvanic separation unit. These solutions have been used for 50+ years in Power Generation, Oil & Gas and other industrial applications, and and have become standard-fit components with original equipment manufacturers (OEMs) globally.

Features and benefits
• High-temperature piezoelectric sensors with external electronics
• Operating temperatures up to 700 °C (1290 °F) for sensors and 85 °C (185 °F) for signal conditioner
• Sensitivities from 10 to 100 pC /g
• Measurement ranges from 0.001 to 500 g (dynamic) and up to 1000 g (overload)
• Frequency responses from 0.5 to 10 000 Hz
• Typical linearity of ±1%, transverse sensitivity of <5% and sensitivity tolerance of ±5%
• Hermetically sealed high-performance metals (such as high nickel alloys) for resistance to heat, humidity and corrosion
• Sensors available with an integral mineral-insulated (MI) cable or as a sensor only, allowing different cable assemblies to be used depending on the application
• Available in Ex versions certified for use in hazardous areas and in standard versions.

So what are you waiting for?

Higher performance, quality and reliability are all waiting for you.
To learn more about how Meggitt Vibro-Meter ® machinery monitoring solutions can help optimise the operation of your machinery, simply speak to your local contact today.

Alternatively, visit our website at:
www.colletplc.com
Browse technical information 24/ 7 and find the right product for your application.
